Electrical Rubber insulation Shock Proof Mats

IEC 61111:2009 Insulating Mats (International Standard)

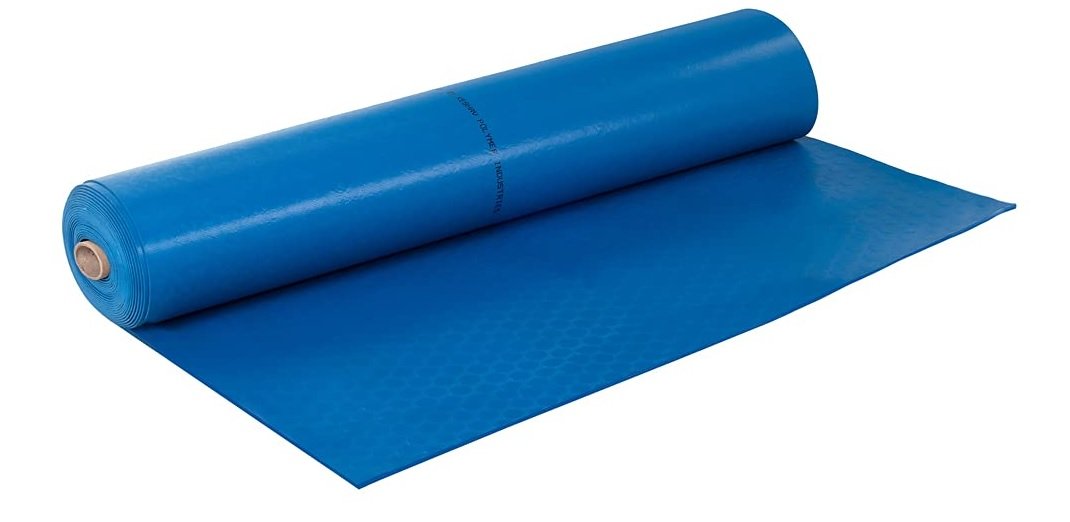

For facilities operating under international guidelines, we supply mats fully compliant with IEC 61111:2009. These mats feature a fine-bolt or chequered non-slip surface for added operator safety.

• Class 0: 1,000V Max Use (3mm Thickness).
• Class 1: 7,500V Max Use (3mm Thickness).
• Class 2: 17,000V Max Use (4mm Thickness).
• Class 3: 26,500V Max Use (5mm Thickness).
• Class 4: 36,000V Max Use (6mm Thickness).

Safety Assurance: Every meter of our matting is tested to ensure a standard of conformity throughout the entire roll, providing safety for operators against electrical shock up to 50 kV.

Premium Electrical Insulating Rubber Mats -- High-Voltage Protection | ISI Marked | Global Safety Standards

Hiren Industrial Corporation provides the ultimate safety solution for personnel working near high-voltage electrical equipment. Our specialized insulating mats are designed to prevent ground-fault shocks, offering a critical safety barrier in sub-stations, transformer rooms, and around LT/HT labs.

1. IS 15652:2006 Insulating Mats (Indian Standard) Our ISI-marked rubber mats are manufactured to meet the rigorous technical specifications of the IS 15652:2006 standard, replacing older, obsolete standards like IS 5424.

• Precision Thickness: Available in 2.0 mm, 2.5 mm, and 3.0 mm variants to match specific voltage requirements.
• Technical Excellence: Flame retardant (up to 5 seconds), low leakage current and acid/alkali/oil resistance.
• Class Selection:
  • Class A (2.0 mm): Suitable for up to 3.3 kV (AC).
  • Class B (2.5 mm): Suitable for up to 11 kV (AC).
  • Class C (3.0 mm): Suitable for up to 33 kV (AC).
